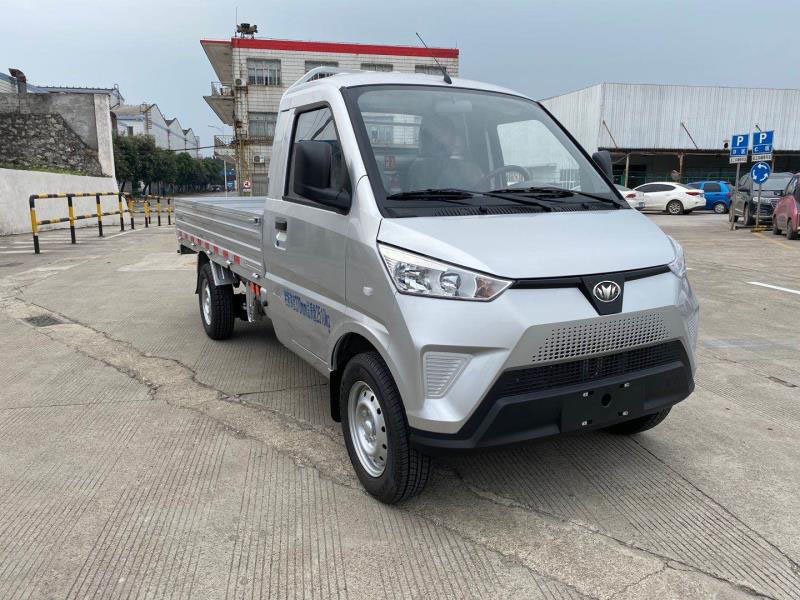

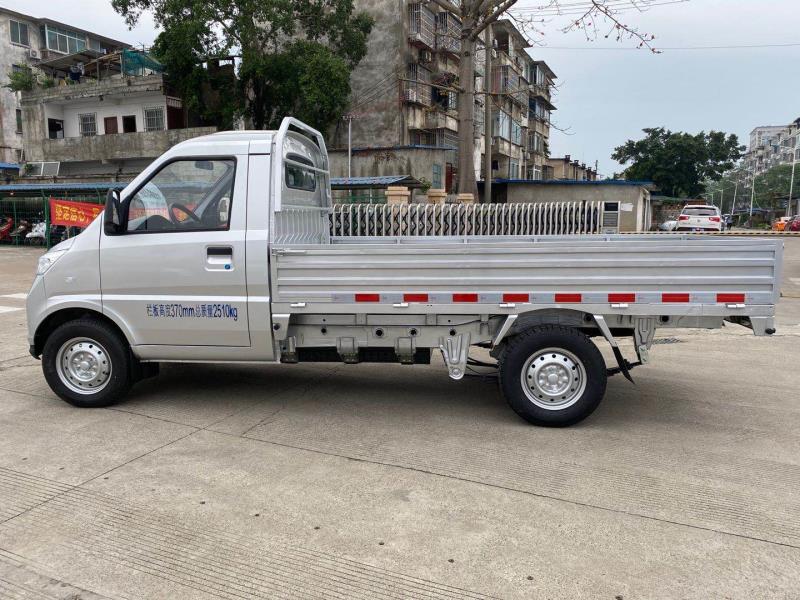

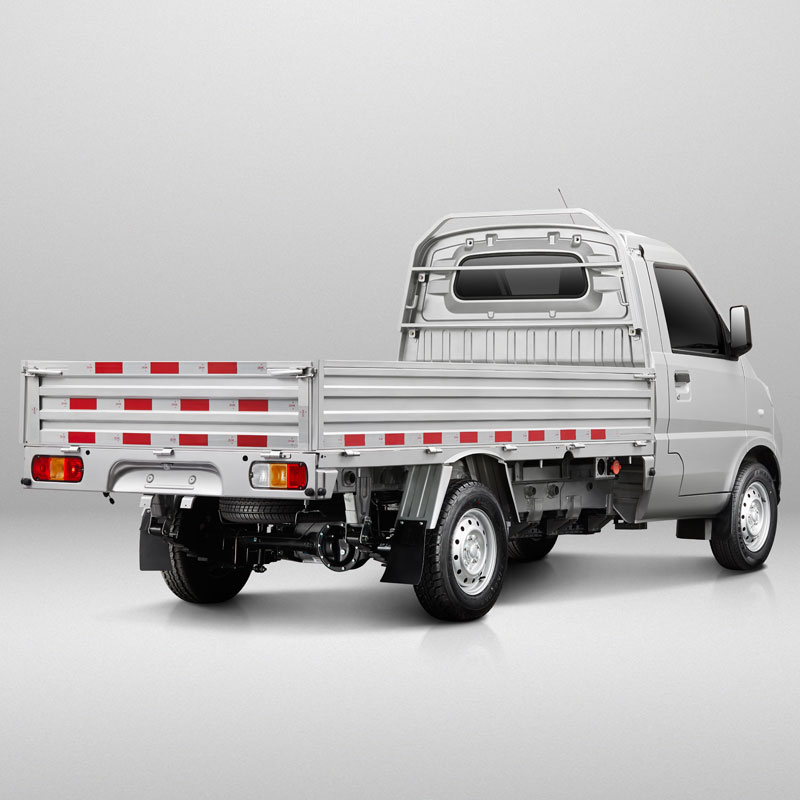

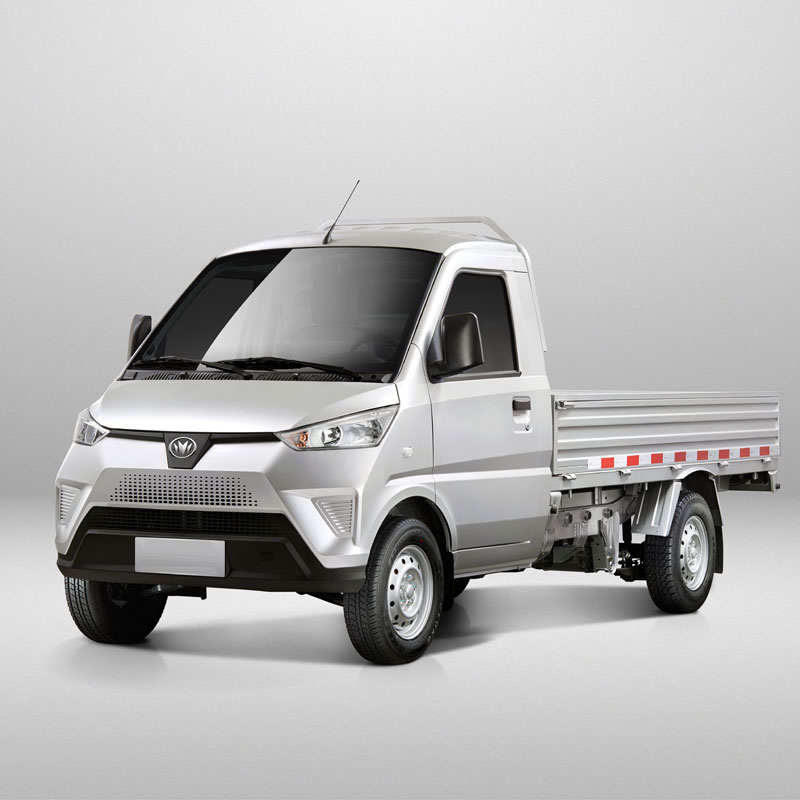

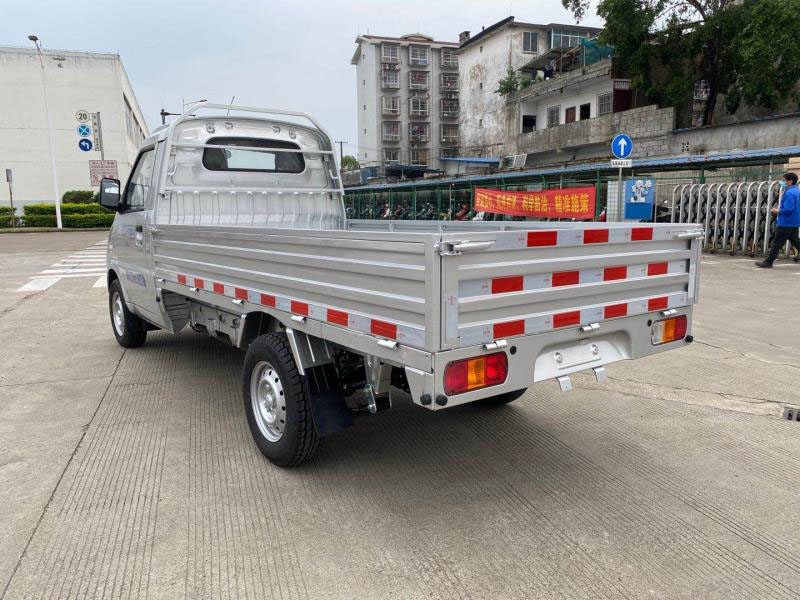

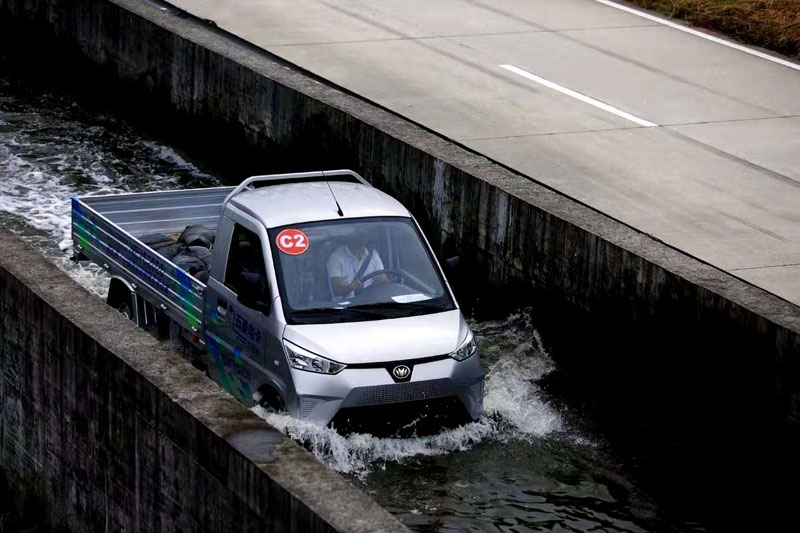

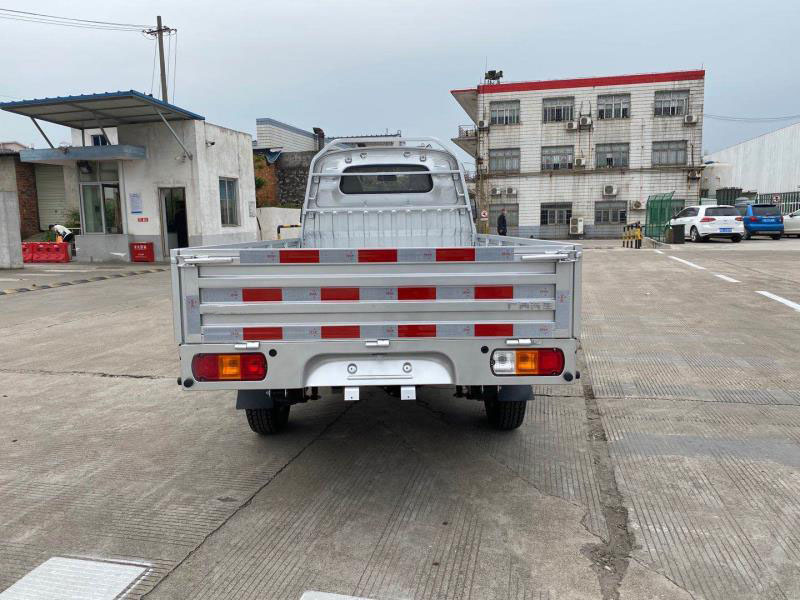

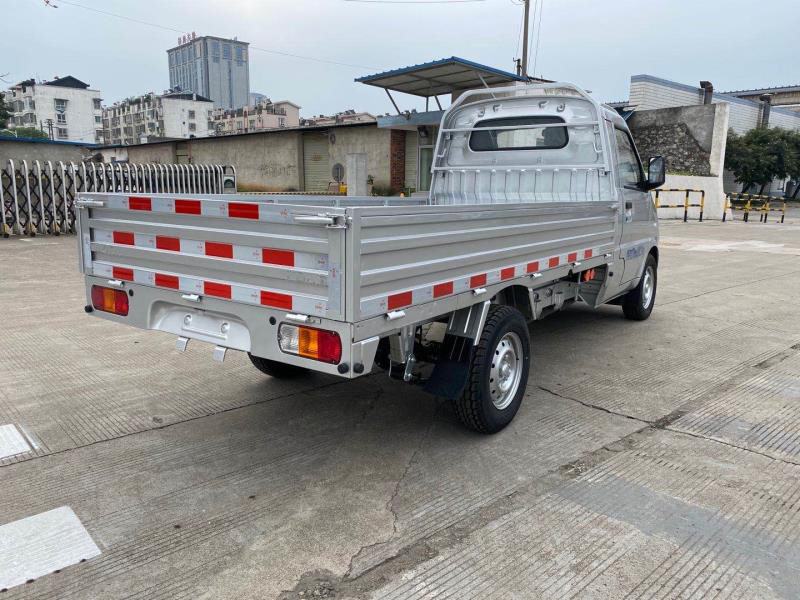

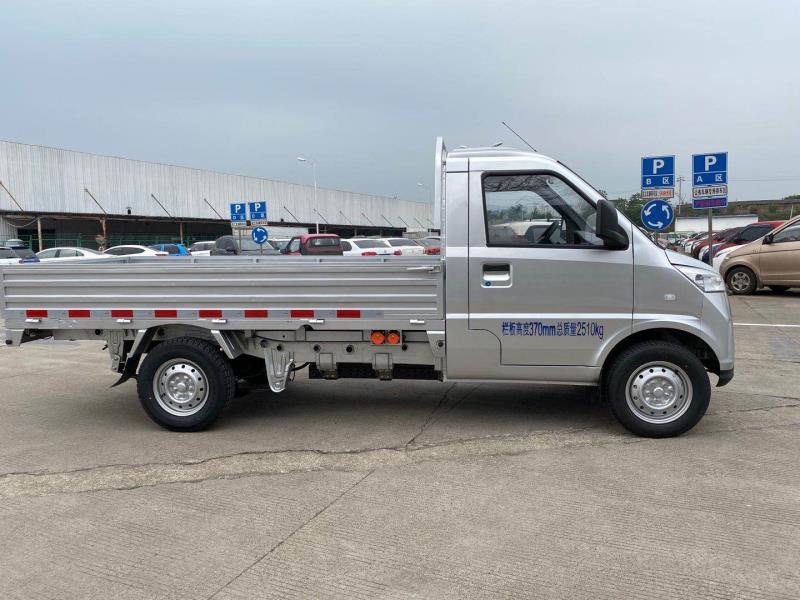

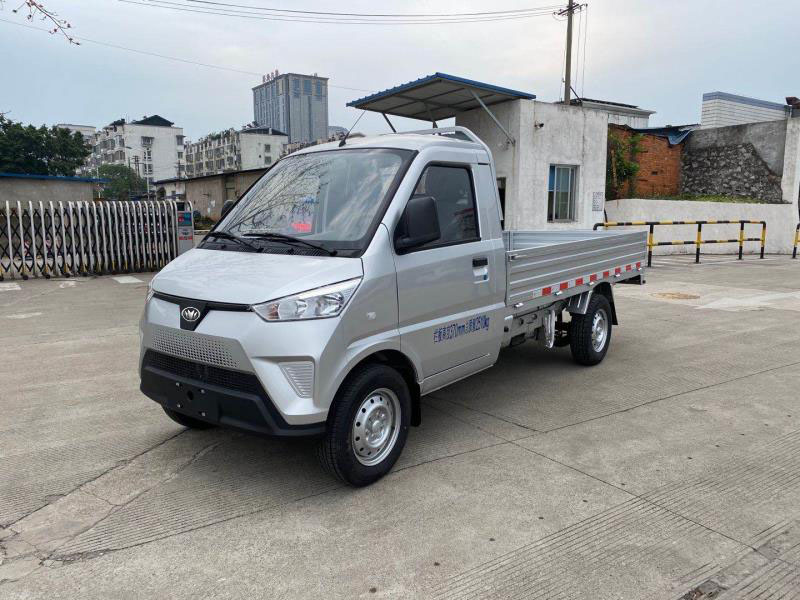

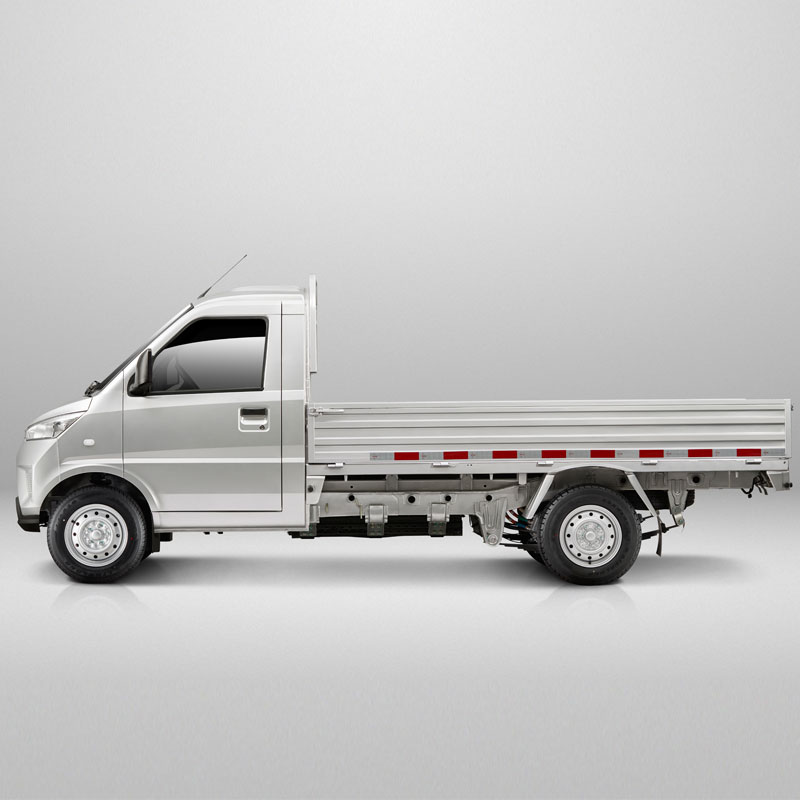

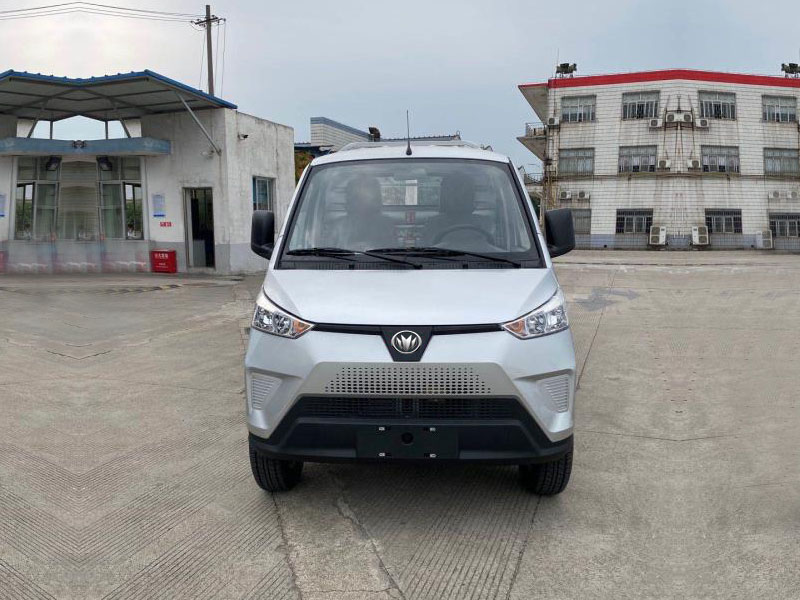

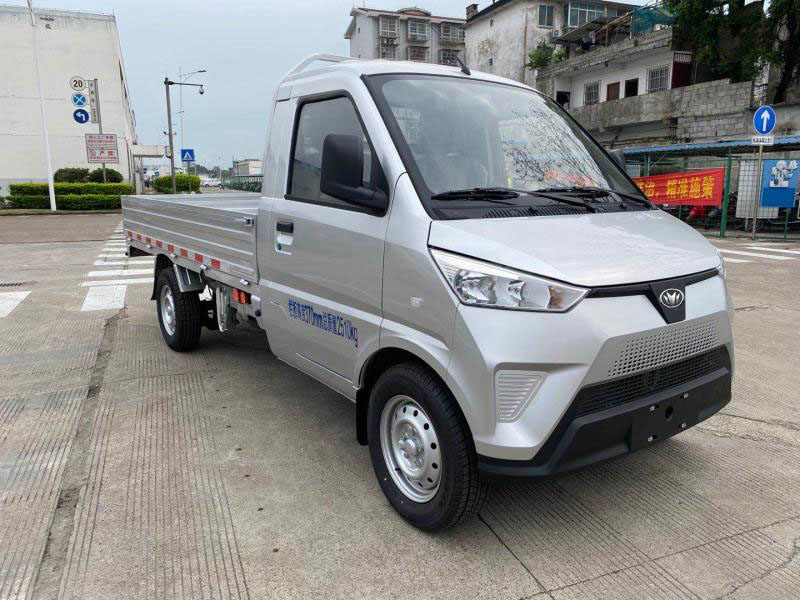

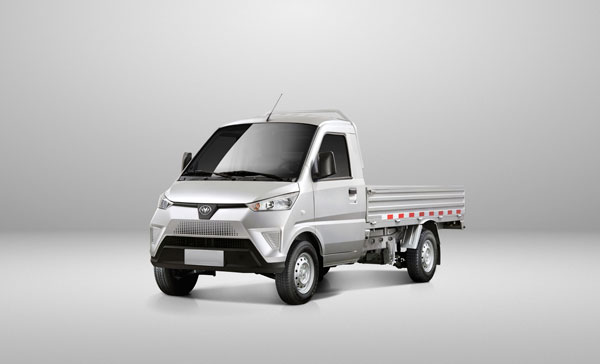

Electric Mini Truck

Vehicle Category

CATL Version Pure Electric Panel Van

Basic Parameters

Overall Length (mm)

4770

Overall Width (mm)

1677

Overall Height (mm)

2416

Wheelbase (mm)

3050

Inside Length of Cargo Compartment (mm)

2700

Inside Width of Cargo Compartment (mm)

1610

Inside Height of Cargo Compartment (mm)

1590

Cargo Compartment Volume (m³)

≥6.8

Curb Weight (kg)

≤1500

Gross Weight (kg)

≤2600

Driving Cab

Single Row (2 Seats)

Performance Parameters

Total Battery Storage (kwh)

41.86

Max. Speed(km/h)

≥80

Max. Range of Pure Electricity(km, VMAS)

≥275

Charging Time（h）

Fast Charge ≤13 (SOC：10-100%)

Slow Charge ≤1(SOC：20~80%)

Battery Type

LFP

Motor Type

Permanent Magnet Synchronous

Rated/Peak Power (kW)

30/60

General Configurations

Battery

●

Driving Motor

●

Motor Controller

●

Vehicle Control Unit

●

Cooling Mode of Motor Controller

×

(Water Cooling)

Cooling Mode of Motor Controller

●

(Air Cooling)

Battery Electric Heating System

●

Vehicle Monitoring System

●

Reversing Radar

●

Front Air Conditioner

●

EPS

●

Slow Charge

●

Fast Charge

●

ABS

●

EBD

●

Front Door Power Window

●

Front Door Manual Window

×

Central Locking with Remote Control Key

●

Co-Driver's Auxiliary Handle

●

Co-Driver's Seat Adjustment

●

(Adjustable Forward and Rearward)

Wheel

Aluminum Wheel 185/65 R15 LT

×

Steel Wheel 185/65 R15 LT

●

Wheel Cover (NLM LOGO)

×

Wheel Shaft Cover (NLM LOGO)

●

Spare Tire

Steel Wheel 185/65 R15 LT

●

Special Configurations

Special Vehicle Appearance

Independent Compartment

Right Side Door (unilateral door side open)

○

Spoiler

○

Rear Pedal

●

Reflective Sticker of Car Body

●

Max. Total Quality Spray

●

Other Configurations

Extinguisher

●

Portable Parking Lights

●

Reflective Vest

●

Power Supply for Cigarette Lighter

●

Fanfare Horn

●

Belt Buckle (wire roop)

×

Movable Belt Buckle (Iron Plate)

●

Headlamp Lens

×

Front Fog Lamp

×
