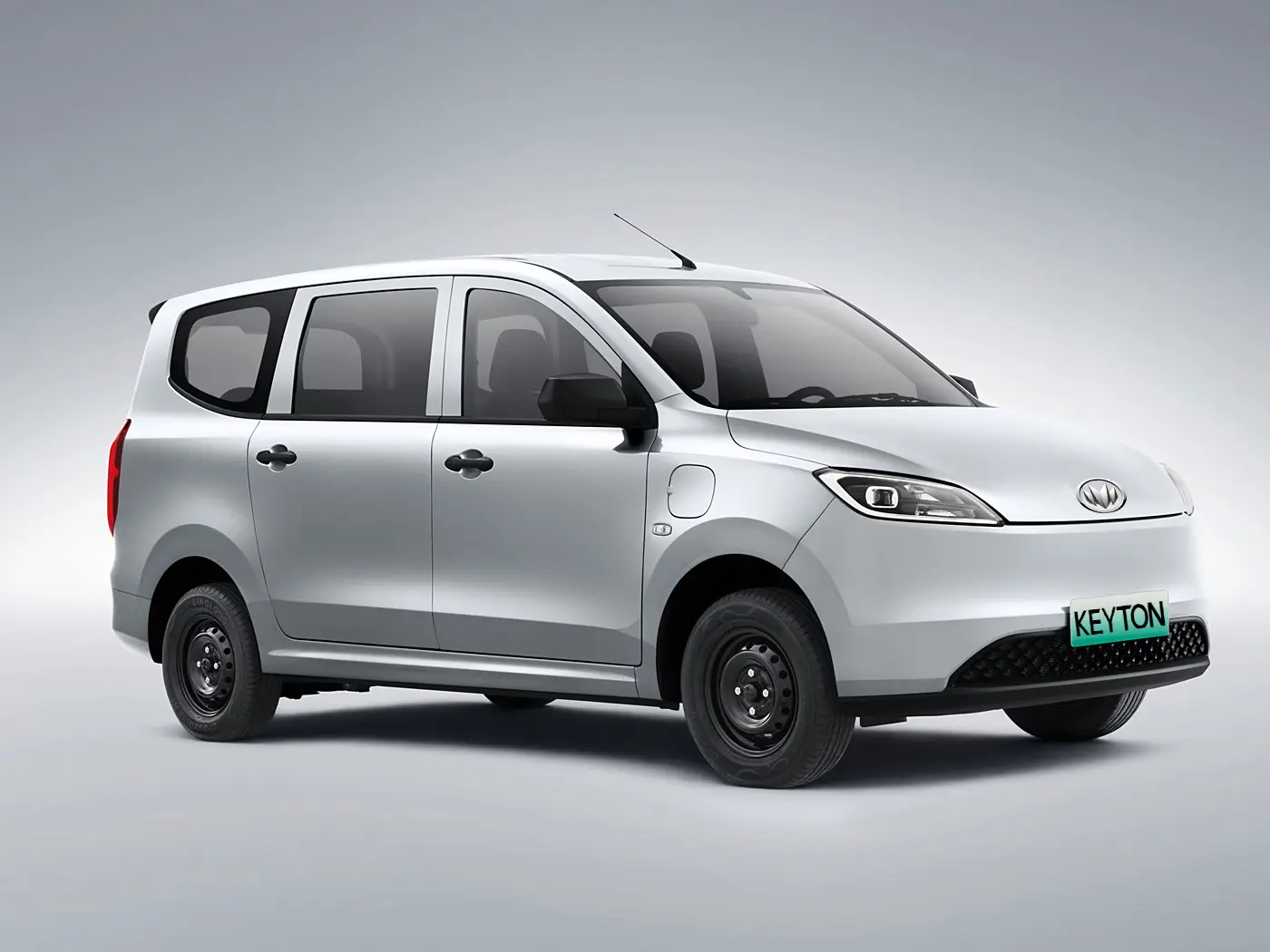

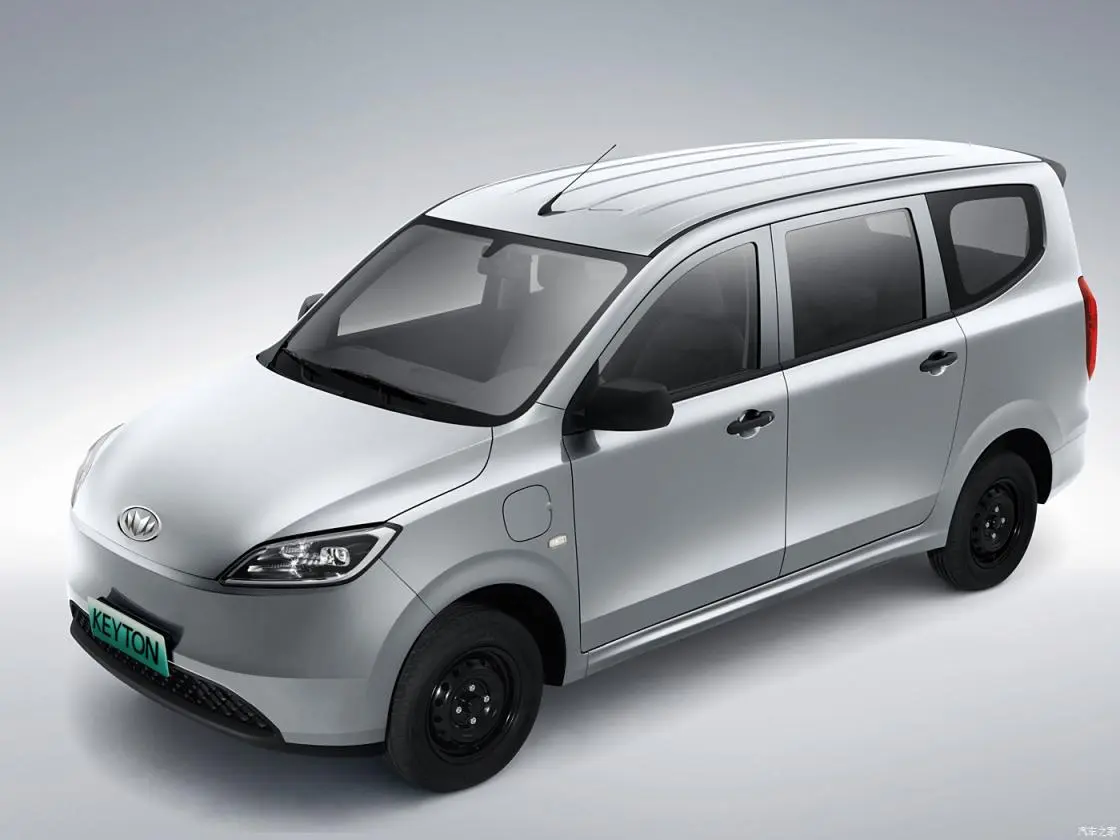

Electric SUV

1.Specification and Dimension

1

Specification and Dimension

Length（mm）

4505

4505

Width（mm）

1730

1730

Height（mm）

1788

1788

Wheelbase（mm）

2721

2721

Front Tread（mm）

1436

1436

Rear Tread（mm）

1450

1450

Ground Clearance（mm）

≥135

≥135

Max. Gradeability（%）

≥20

≥20

Curb Weight（kg）

≤1520

≤1550

Full Weight（kg）

≤2150

≤2150

Door Quantity（pcs）

5

5

Seats Quantity（seat）

5（2+3）

8（2+3+3）

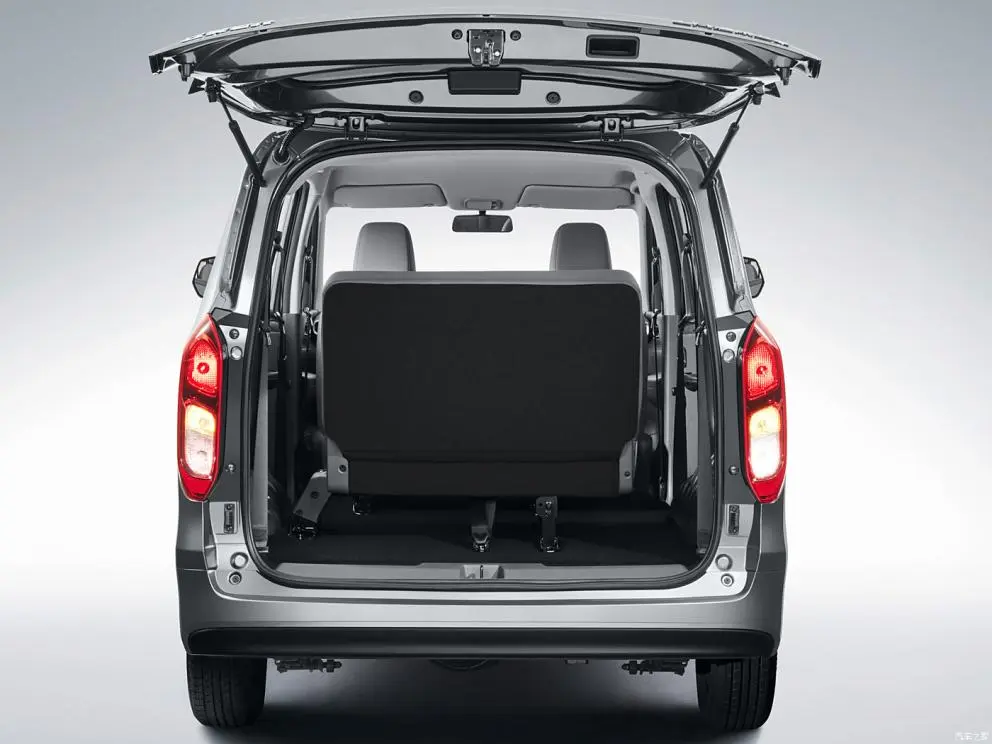

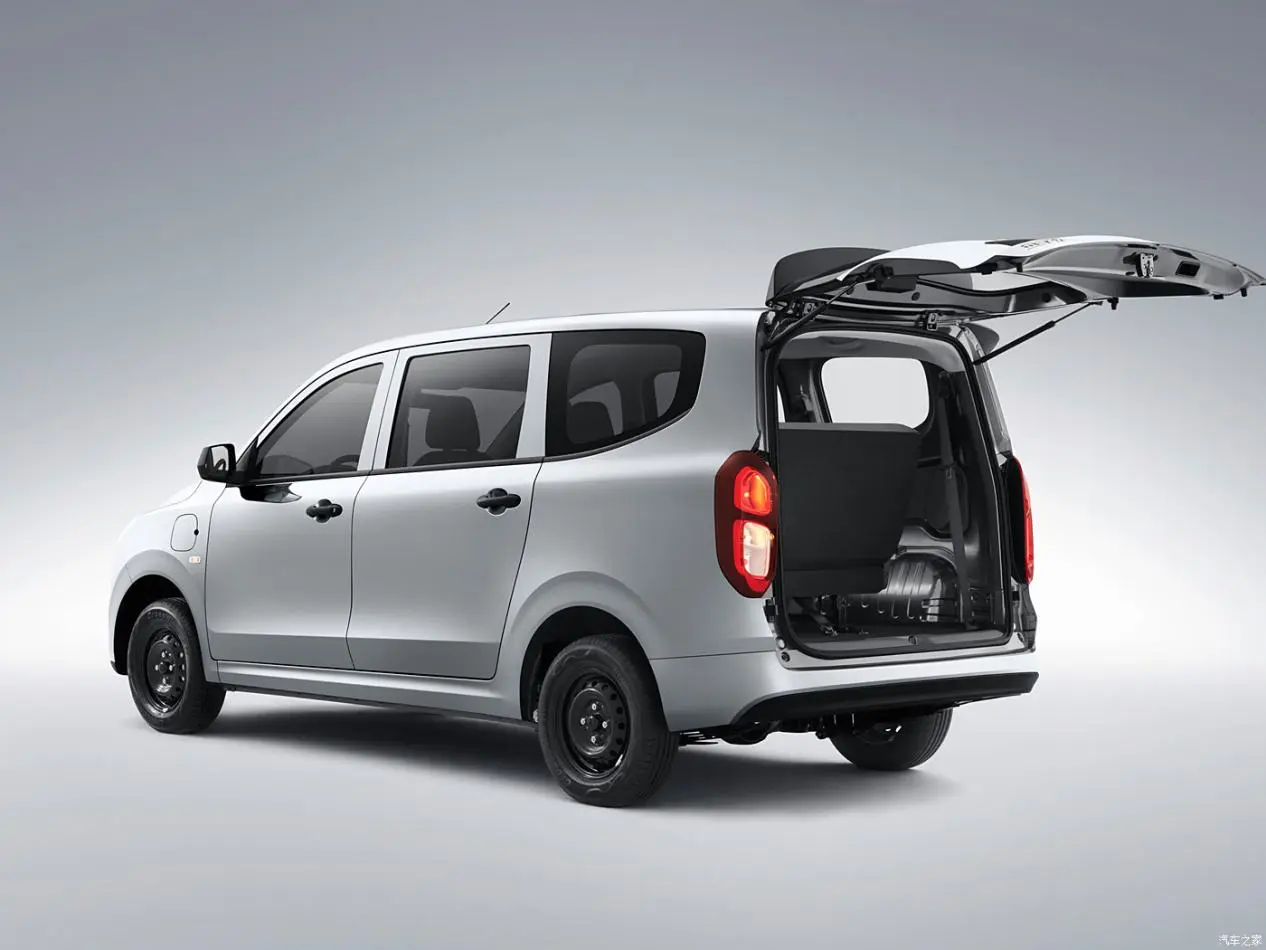

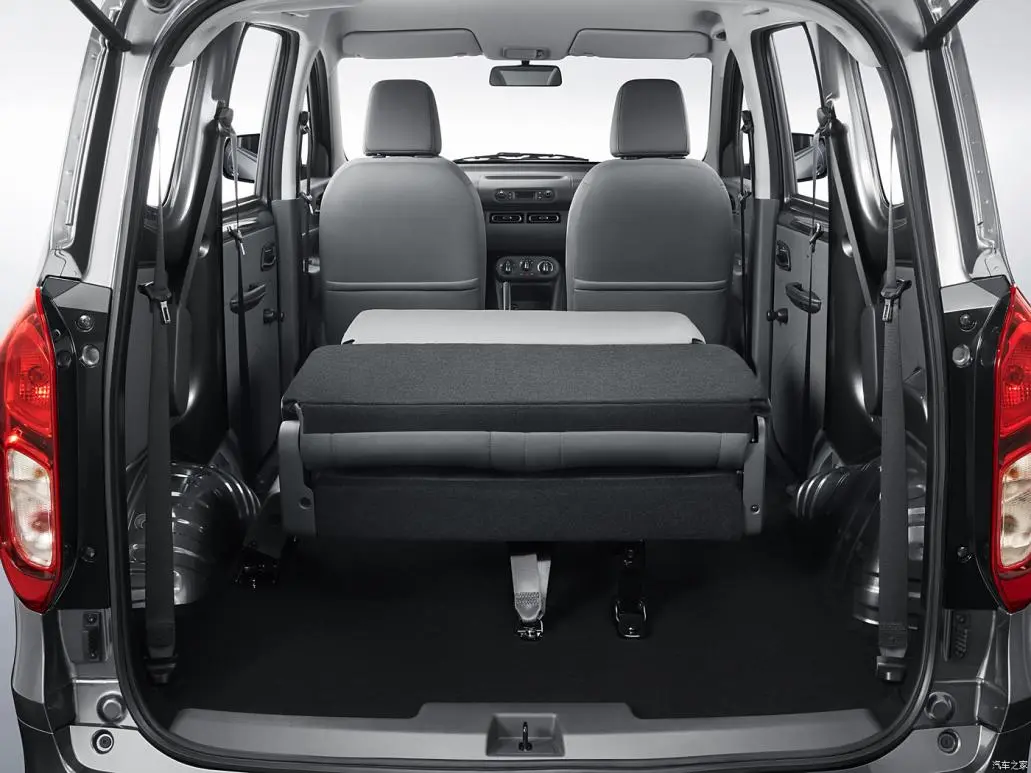

Cargo Volume（L）

311-933

311-933

2.Battery & Motor & Charging Mode

1

Battery & Motor

Battery Type

Ternary Lithium Battery

Ternary Lithium Battery

Battery Capacity(kWh)

61.3

61.3

Energy Density（Wh/kg）

≥160

≥160

Battery Cooling Mode

Air Cooling

Air Cooling

Maximum Mileage of Comprehensive Working Condition(km)

≥450

≥450

100km Power Consumption of Comprehensive Working Condition（kW•h /100km）

≤15

≤15

Battery Heat

●

●

Battery Pack Warranty

8 Years or 150,000KM

8 Years or 150,000KM

Rated/Peak Power（kW)

30/60

30/60

Highest Speed（km/h）

≥100

≥100

Highest Speed in 30 Minutes（km/h）

≥100

≥100

Drive Manner

Front-engine, Front-wheel-drive

Front-engine, Front-wheel-drive

2

Charging Mathod

Slow Charge Port

●

●

Fast Charge Port

●

●

Charge Time (DC)（h）

1 Hour

1 Hour

Charge Time (AC)（h）

10~11 Hours

10~11 Hours

3

Energy Storage System

Brake Energy Regeneration

●

●

3.Chassis

1

Break System

Front Disc and Rear Drum

×

×

Four Wheel Disc Brake

●

●

ABS

●

●

EBD

●

●

Vacuum Brake Assist System

●

●

Self Adjusting Clearance Mechanism

●

●

Hand Break

●

●

2

Steering System

EPS

●

●

Steering Wheel Adjustment (Up & Down)

●

●

3

Front Suspension

Macpherson Independent Suspension

●

●

Rear Suspension

Leaf Spring

×

×

Five-link Suspension

●

●

4

Wheel

Aluminum Wheel 195/65R15

●

●

Spare Wheel

Chassis Hanging (Steel Wheel 185/70R14)

×

×

Tow Hook

Front Towing Hook

●

●

4.Electrical Equipment（Light，AC etc.）

1

Accumulator

Capacity 45AH

●

●

2

Light

Front Light

●

●

Adjustable Combined Headlights

●

●

Front Fog Lamp

●

●

Side Steering Light(Outside Rear-view Mirror)

●

●

Combined Tail Light

●

●

Rear Fog Lamp

●

●

License Plate Lamp

●

●

LED High Brake Light

●

●

3

Interior Lighting

Front Dome Light

●

●

Front & Middle Dome Light Delay Out

●

●

Middle Dome Light

●

●

4

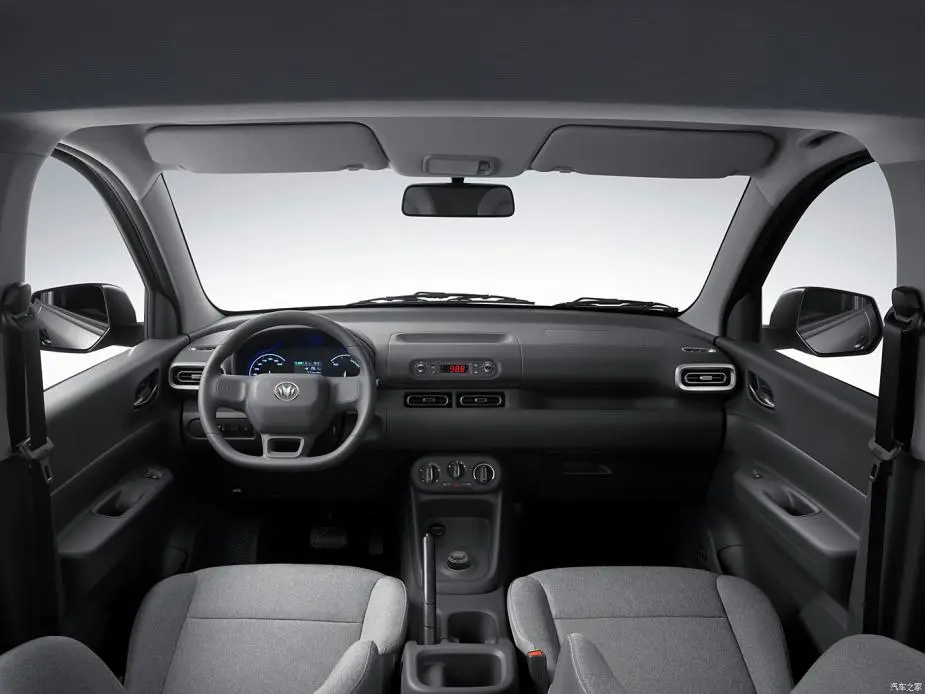

Instrument

Mileage

●

●

Endurance Mileage

●

●

Speedometer

●

●

Motor Power Meter

●

●

Electric Quantity

●

●

Gear Range

●

●

Indicator Light, Warning Light，Buzzer

●

●

5

Wiper Wash

Front Windshield Boneless Wiper

●

●

Intermittent Wiper

●

●

Front Windshield Washer

●

●

Rear Wiper & Sprayer

●

●

6

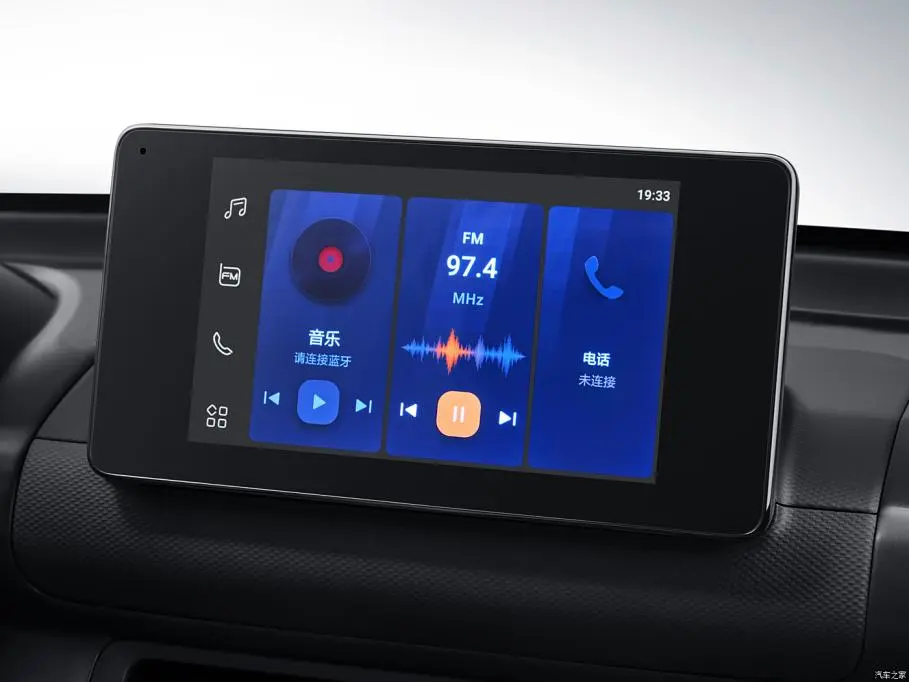

Audio

AM/FM+MP3

●

●

MP4

●

●

MP5

●

●

8 Inch Screen

●

●

GPS

●

●

SD Card

●

●

Bluetooth

●

●

4 Speaker System

●

●

Top Antenna

●

●

7

A/C

PTC Warm Air

●

●

Manual Front A/C

●

●

Manual Rear A/C

●

●

5.Trim & Car Body Accessories

1

Bumpers

Front Bumper

×

×

Front Bumper（with Fog Lamp）

●

●

Rear Bumper

×

×

Rear Bumper（with Parking Radar）

●

●

2

Door Handle

Color of the Door Handle same as the body

×

×

Chrome Plated Door Handle

●

●

Door Handle (Keyless Access Button)

×

×

3

Outside Rear-view Mirror

Manual Outside Rear-view Mirror

×

×

Electric Outside Rear-view Mirror (with Turn Light)

●

●

4

Exterior Accessories

Electric Vehicle Exclusive Front Grille

●

●

Brand Name Label

●

●

Brand LOGO

●

●

Exclusive Logo for Electric Vehicles

×

×

Vehicle Name Label

●

●

Front Windscreen Trim

×

×

Roof Trim Strip

●

●

Luggage Rack

●

●

Side Sticker

○

○

High Quality Appearance Bag

×

×

Sports Appearance Kit (front wall, side wall, back wall, wheel brow, etc.)

●

●

Front and Back Door Chrome Shiny Strip

●

●

Black Film on B and C Pillars

●

●

Black Film on D Pillar

×

×

Water Cut Bright Strip Decoration

●

●

Stainless Steel Side Step

●

●

Licence Plate and Illumination Device Trim

●

●

Ordinary Spoiler

×

×

Sporty Style Spoiler

●

●

Fender

●

●

Battery Lower Fender

●

●

Rear Wheel Fender

●

●

5

Glasses

Front Windshield(Interlayer White Glass with Black Edge)

●

●

Front Door White Safety Glass

●

●

Middle Door White Safety Glass

●

●

White Glass on Rear Air Window

●

●

Power Window on the Front Door (One-click Descent Function on Driver's Side Window)

●

●

Middle Door Electric Window

●

●

Middle Door Manual Window

×

×

Windows can be Closed after Engine Stalls

●

●

Rear Defrosting and Defogging Device

●

●

Side Window (Butterfly Window)

●

●

Green Glass in the Whole Vehicle

×

×

6

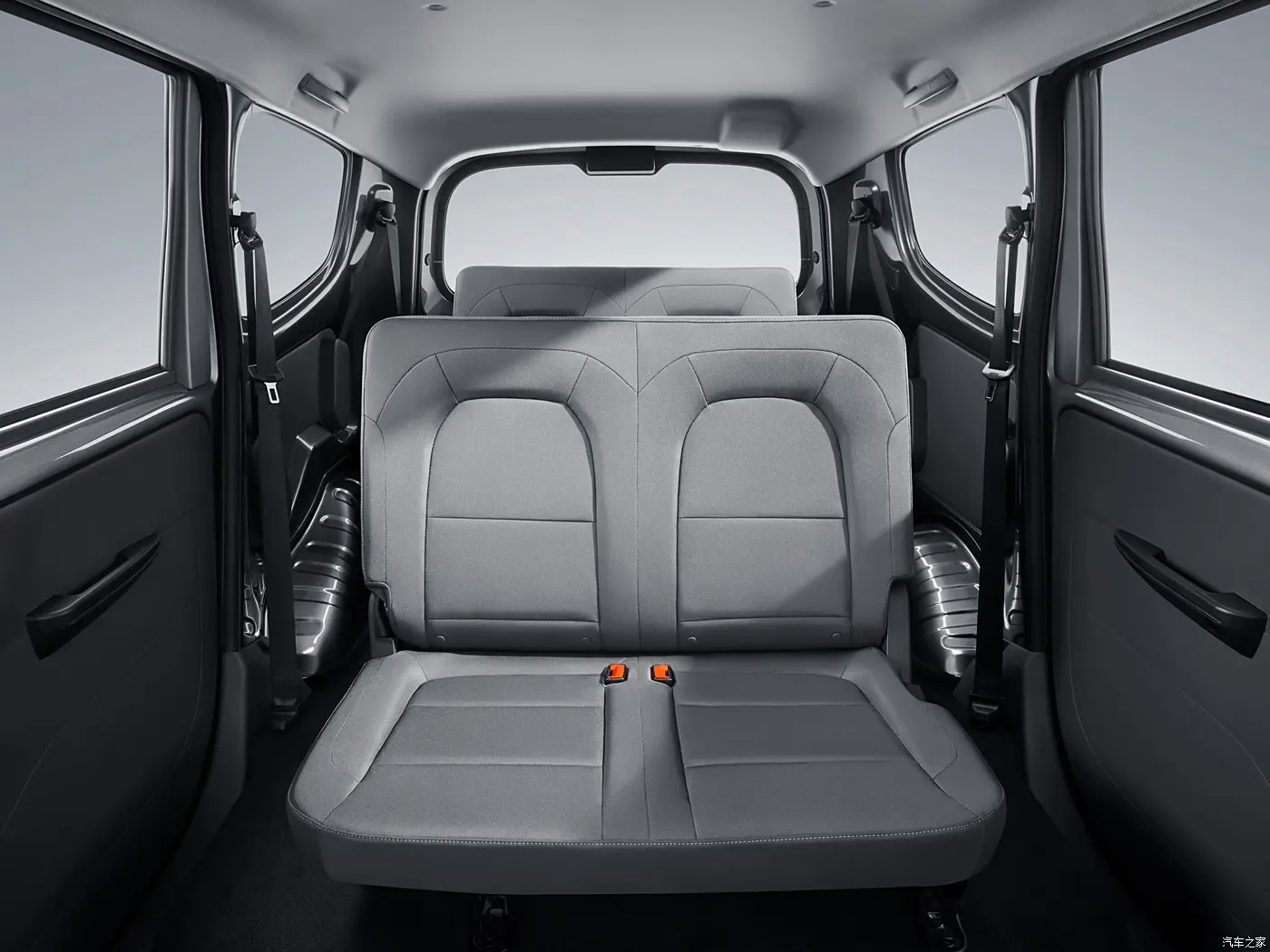

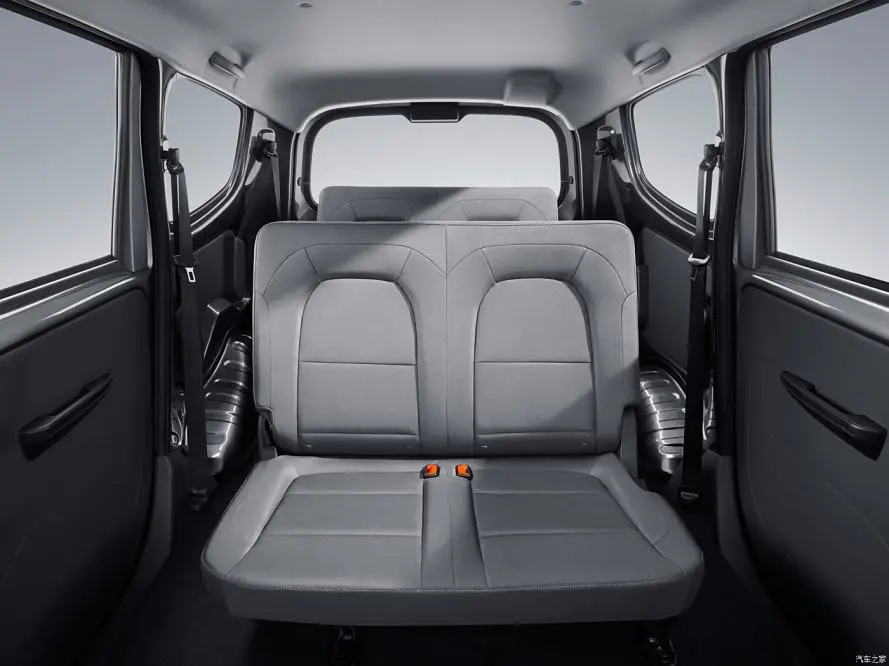

Seats

High Quality Fabric Seat

×

×

High Quality Artificial Leather Seat (Beige)

×

×

High Quality Artificial Leather Seat (Black)

●

●

High Quality Artificial Leather Seat (Two Colors)

×

×

Front and Rear Integral Adjustment of Drivier Seat

●

●

Front and Rear Adjustment of Driver Seat Backrest

●

●

Height Adjustment of Driver Seat

●

●

Front and Rear Integral Adjustment of Co-driver Seat

●

●

Front and Rear Adjustment of Co-driver Seat Backrest

●

●

Auxiliary Instrument Panel Center Armrest

●

●

2 Independent Seats in the Middle Row (with Armrest, can sliding back and forth, with Headrest)

×

×

4/6 Seats in the Middle Row (with Headrests)

●

●

2 Independent Seats in the Third Row (can be Folded and Turned Over)

×

×

Third Row Seats with Headrests that can be Folded and Turned Over

×

●

7

Door Trim

Front Door Injection Molding Trim

●

●

Front Door Panel Trim

×

×

High Grade Door Interior Panel for Middle Door Sedan

●

●

Panel Trim of Middle Door Sedan

×

×

Front Door/Middle Door Panel: Imitation Leather + Sponge Material Decoration

●

●

Front Door and Middle Door Panel: Fabric Decoration

×

×

Front Door/Middle Door Armrest: Imitation Leather + Sponge Material Decoration

●

●

Front Door/Middle Door Armrest: Fabric Material Decoration

×

×

Back Door Panel Trim

×

×

Back Door Molding Trim

●

●

Upper Guard for Back Door

●

●

8

Inside Rear-view Mirror

Manual Anti-dazzling Inside Rear-view Mirror

●

●

Normal Internal Rear-view Mirror

×

×

9

Sun Visor

Sun Visor (with Bill fold on Driver Seat)

●

●

Sun Visor (with Make-up Mirror on Passenger Seat)

●

●

Sun Visor (with Light on Passenger Seat)

×

×

10

Canopy

Soft Canopy

×

×

Molded Canopy (non-woven)

×

×

Molded Canopy (non-woven + printed)

●

●

11

Interior Accessories

Colour Register of Upper and Lower Instrument Panel

×

×

Same Color on Top and Bottom of Instrument Panel (Black)

●

●

Instrument Panel Trim

Water Transfer Printing Decoration

Water Transfer Printing Decoration

Steering Wheel (PU)

●

●

Steering Wheel (Real Leather + Stitching)

×

×

Audio Keys on Steering Wheel

●

●

Front Wall Heat Insulated Pad

●

●

Heat Insulated Pad

●

●

Carpet (Flocking Fabric + Polyester Fiber)

●

●

Power Supply for Cigarette Lighter

●

●

12V Vehicle Power Supply

×

×

Power Window Panel

Water Transfer Printing Decoration

Water Transfer Printing Decoration

Exclusive Electric Gear Shifter

●

●

Shift Cover

Silver

Silver

Guard Plate on Pillar A

●

●

Fasten Seatbelt Retractor Cover

●

●

Handles

3 pcs

5 pcs

Front and Middle Door Handle (Material Color)

×

×

Front and Middle Door Handle (Chrome Plated)

●

●

Front Door Lock Stop Switch

●

●

Front Threshold Layering

●

●

Rear Threshold Layering

●

●

Trunk Open Button (on the Dashboard)

●

●

Back Threshold Layering

●

●

Wheel Cover Decoration

●

●

6.Safe and Intelligent Driving Assistance

1

Security Configuration

Driver's Airbag

●

●

Co-Driver's Airbag

●

●

Automatic Trip Lock

●

●

Middle Door Child Safety Lock

●

●

Door Open Warning Light

●

●

Front Row Seat Three-point Safety Belt （Non Preload Limiting Force）

●

●

Second Row Seat Three-point Safety Belt（Emergency Lock Type）

●

●

Third Row Seat Three-point Safety Belt（Emergency Lock Type）

×

●

Seatbelt Warning

●

●

ISO FIX

●

●

Door Anti-collision Beam

●

●

Automotive Voice Alarm System

●

●

Tire Pressure Monitoring

●

●

Collapsible Steering Column

●

●

Tachograph

●

●

Reflective Door Sticker

×

×

2

Anti-theft Configuration

Electronic Security System

●

●

Foldable Remote Key

●

●

False Key

●

●

Intelligent Key

×

×

Left Front Door/Back Door Lock Cylinder

●

●

Right Front Door Lock Cylinder

×

×

Steering Column Lock

●

●

3

Driver Assistance

Parking Radar（2 Sensors）

●

●

Backup Camera

●

●

ETC

○

○

Keyless Accessing、 Starting System

×

×

7.Others

1

Tools

Warning Triangle

●

●

Tire Repair Kit

Tire Repair Liquid Inflator Pump

●

●

Development

Charging Pile

○

○

Body Color

White, Silver

○

○
